世界首推 !!! DDC 2 Channel mini-PCIe MIL-STD-1553 介面卡

World’s 1st and Only 2-Channel Mini-PCIe® MIL-STD-1553/1760 Card!

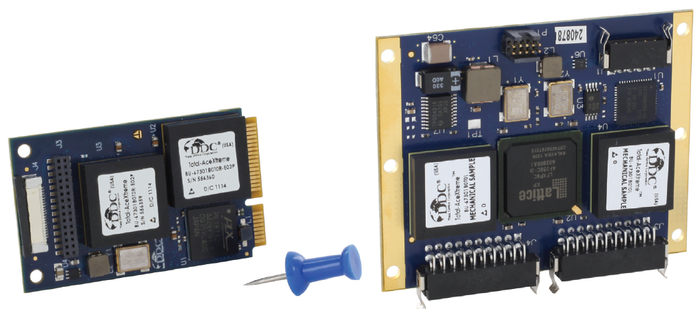

Bohemia, New York (October 2011) Data Device Corporation (DDC) introduces a lightweight, low-power, small form factor MIL-STD-1553/1760 Mini-PCIe card (30 x 50.95mm), available with one or two 1553/1760 channels. Designed for portable laptops, tablets, and rugged small embedded systems, this new Mini-PCIe card is engineered with DDC’s new Total-AceXtreme™ component. Total-AceXtreme is the most advanced MIL-STD-1553 ASIC technology ever created — delivering the world’s smallest size, lowest power, and very high mean time between failures (MTBF) for this new Mini-PCIe card.
The BU-67114Hx MIL-STD-1553 Mini-PCIe® card leverages the full capabilities of DDC’s new Total-AceXtreme® architecture including a highly autonomous Bus Controller (BC) with expanded instruction set, a Multi-RT (Remote Terminal) interface providing a wide variety of buffering options, and a 1553 Bus Monitor (MT) that allows users to store data in an industry standard IRIG-106 Chapter 10 format. Each channel can function in BC/MT or Multi-RT/MT mode independently. The card is compatible with the industry standard, field proven DDC AceXtreme® software API, and is supported by a host of software packages that enable shorter design cycles.
Benefits include:
Complete Hardware and Software Solution
Enables 1553 to be Added to Any System
Suitable for Both Embedded and Portable Applications
Save Time and Reduce Cost
Common Test/Embedded API for Rapid Prototyping with Less Programming Time
Program in Minutes with BusTrACEr™ Automated Application Source Code Generation
On-Board DMA Engine for Low CPU Utilization
“The BU-67114Hx Mini-PCIe® card is designed as a simple and secure way to provide up to two dual redundant MIL-STD-1553/1760 channels to a laptop or tablet computer, or within compact embedded applications where small size, low-power, lightweight and field-proven dependability are required”, stated George Los, DDC’s Data Bus Product Manager.
